FactorioロケットTAメモ

FactorioロケットTAを行う際のメモ。

大物に要する素材

  • 1 Rocket (+40% productivity)
    • 720 LDS
      • 1440 Steel
      • 14400 Copper
      • 3600 Plastic
    • 720 Rocket Fuel
      • 7200 Solid fuel
      • 72000 Light oil
    • 720 Rocket control unit (Prod +8%)
      • 720 Blue Circuit
        • 5040 Red circuit
        • 28k Green circuit
        • 360 Salfur
      • 720 Speed Module
  • 1 Rocket silo
    • 200 Blue circuit
    • 200 Electric engine unit
    • 1000 Steel
    • 100 Pipe
    • 1000 Concrete (1333s)
      • 500 Stone brick
      • 100 Iron ore
  • 1300 Yellow science (+8% productivity)
    • 1206 LDS
    • 804 Blue circuit
    • 402 Flying robot frame
      • 402 Electric engine unit
      • 804 Battery
      • 402 Steel
      • 1206 Green circuit
  • 1675 Purple science (+8% productivity)
    • 5170 Stone brick
    • 5170 Red circuit
    • 2584 Green circuit
    • 13k Steel
  • 4 Productivity module 3
    • 120 Blue circuit
    • 120 Red circuit
    • 80 Productivity Module 1
  • 4125 Blue science
    • 4125 Steel
    • 6188 Red circuit
  • 250 Military science
    • 125 Piercing Ammo
      • 625 Copper
    • 125 Steel
    • 125 Grenade
    • 250 Wall
      • 1250 Stone Brick

主要な中間素材

  • 20k Steel
  • 7000 Stone Brick
  • 1700 Blue circuit
  • 27k Red circuit
  • 62k Green circuit

生資源とプラスチック

  • 157k Iron ore
  • 296k Copper ore
  • 25k Stone
  • 70k Plastic

研究

研究は、以下の通り行う。赤・緑パックでできる研究は、(上位のパックを生産できていないために)研究所が空いていたら、先に行う。

研究名 黄色
Automation 1 10 0 0 0 0 0
Logistics 1 20 0 0 0 0 0
Electronics 30 0 0 0 0 0
Fast inserter 30 0 0 0 0 0
Steel processing 50 0 0 0 0 0
Steel axe 50 0 0 0 0 0
Logistic science pack 75 0 0 0 0 0
Automation 2 40 40 0 0 0 0
Turrets 10 0 0 0 0 0
Military 1 10 0 0 0 0 0
Military 2 20 20 0 0 0 0
Heavy armor 30 0 0 0 0 0
Research speed 1 100 100 0 0 0 0
Engine 100 100 0 0 0 0
Fluid handling 50 50 0 0 0 0
Oil processing 100 100 0 0 0 0
Logistics 2 200 200 0 0 0 0
Automobilism 100 100 0 0 0 0
Mining productivity 1 250 250 0 0 0 0
Sulfur processing 150 150 0 0 0 0
Battery 150 150 0 0 0 0
Plastics 200 200 0 0 0 0
Advanced electronics 1 200 200 0 0 0 0
Chemical science pack 75 75 0 0 0 0
Advanced material processing 75 75 0 0 0 0
Modules 100 100 0 0 0 0
Productivity module 1 50 50 0 0 0 0
Speed module 1 50 50 0 0 0 0
Explosives 100 100 0 0 0 0
Cliff explosives 200 200 0 0 0 0
Research Speed 2 200 200 0 0 0 0
Advanced oil processing 75 75 0 75 0 0
Lubricant 50 50 0 50 0 0
Electric engine 50 50 0 50 0 0
Robotics 75 75 0 75 0 0
Construction robotics 100 100 0 100 0 0
Worker robots speed 1 50 50 0 50 0 0
Toolbelt 100 100 0 0 0 0
Stone walls 10 0 0 0 0 0
Military science pack 30 30 0 0 0 0
Optics 10 0 0 0 0 0
Laser 100 100 0 100 0 0
Laser turrets 150 150 150 150 0 0
Land mines 100 100 100 0 0 0
Advanced Electronics 2 300 300 0 300 0 0
Flammables 50 50 0 0 0 0
Rocket fuel 300 300 0 300 0 0
Railway 75 75 0 0 0 0
Advanced material processing 2 250 250 0 250 0 0
Production science pack 100 100 0 100 0 0
Low density structure 300 300 0 300 0 0
Utility science pack 100 100 0 100 0 0
Productivity module 2 75 75 0 75 0 0
Productivity module 3 300 300 0 300 300 0
Effect transmission 75 75 0 75 75 0
Rocket control unit 300 300 0 300 0 300
Speed module 2 75 75 0 75 0 0
Speed module 3 300 300 0 300 300 0
Concrete 250 250 0 0 0 0
Rocket silo 1000 1000 0 1000 1000 1000
Total 7575 7240 250 4125 1675 1300

好みで、以下の研究を入れる。

  • Inserter capacity bonus 2 まで: 赤x600 緑x600

メモ

  • Stone furnace x24のラインは、450/min(0.5ベルト)のIron plateを生産する
    • 設置済みのStone furnaceをSteel furnaceにアップグレードするメリットは、燃費の向上。
  • Steel furnace x12のラインは、450/min(0.5ベルト)のIron plateを生産する
  • Electric mining drill x30は、900/min(1ベルト)のIron oreを採掘する(mining productivityなしの状態)

Bazel on Bash on Ubuntu on Windows 14393

はじめに

とにかく Bash on Ubuntu on Windows で Bazel を動かしてみます。 Getting StartedHello World まで実行してみます。

環境

実施

JDK をインストール (JDK 1.7) します。

$ sudo apt-get install default-jdk

Bazel をインストール します。

Using Bazel custom API repository (recommended) の通り JDK 1.7 版をインストールします。

$ echo "deb [arch=amd64] http://storage.googleapis.com/bazel-apt stable jdk1.7" | sudo tee /etc/apt/sources.list.d/bazel.list

$ curl https://storage.googleapis.com/bazel-apt/doc/apt-key.pub.gpg | sudo apt-key add -

$ sudo apt-get update && sudo apt-get install bazel

普通に bazel を実行すると JVM がハングします。

Java running issues (Consolidated) を参考に、 JIT を無効化して WSL の不具合を回避します (-Xint オプション)。

※追記(2016-10-01): Cumulative Update for Windows 10 Version 1607: September 29, 2016 (Build 14393.222) で回避が不要になっていることを確認。

$ touch WORKSPACE

$ cat > BUILD <<'EOF'
genrule(
  name = "hello",
  outs = ["hello_world.txt"],
  cmd = "echo Hello World > $@",
)
EOF

$ bazel --host_jvm_args="-Xint" build :hello
.
WARNING: Sandboxed execution is not supported on your system and thus hermeticity of actions cannot be guaranteed. See http://bazel.io/docs/bazel-user-manual.html#sandboxing for more information. You can turn off this warning via --ignore_unsupported_sandboxing.
INFO: Found 1 target...
Target //:hello up-to-date:
  bazel-genfiles/hello_world.txt
INFO: Elapsed time: 6.135s, Critical Path: 0.09s

$ cat bazel-genfiles/hello_world.txt
Hello World

Building LLVM/Clang on Bash on Ubuntu on Windows

はじめに

Bash on Ubuntu on Windows 上で Bazel を試してみたい。 ウォーミングアップに LLVM/Clang のビルドを実施してみる。

環境

実施

必要なツールのインストール

~/win/ubuntu/refs$ sudo apt-get install gcc g++ make cmake subversion

LLVM/Clang のビルド

の通りにソースファイルを入手。

~/win/ubuntu/refs$ ls llvm
bindings        CODE_OWNERS.TXT  docs      lib            llvm.spec.in  RELEASE_TESTERS.TXT  test       utils
cmake           configure        examples  LICENSE.TXT    projects      resources            tools
CMakeLists.txt  CREDITS.TXT      include   LLVMBuild.txt  README.txt    runtimes             unittests

~/win/ubuntu/refs$ mkdir build

~/win/ubuntu/refs$ cd build

~/win/ubuntu/refs/build$ cmake -G "Unix Makefiles" ../llvm
CMake Error at CMakeLists.txt:3 (cmake_minimum_required):
  CMake 3.4.3 or higher is required.  You are running version 2.8.12.2



-- Configuring incomplete, errors occurred!```

~/win/ubuntu/refs/build$ cd ..

CMake が古いじゃないか

~/win/ubuntu/refs$ mkdir cmake

~/win/ubuntu/refs$ cd cmake

~/win/ubuntu/refs/cmake$ wget https://cmake.org/files/v3.6/cmake-3.6.1.tar.gz

~/win/ubuntu/refs/cmake$ tar xzf cmake-3.6.1.tar.gz

~/win/ubuntu/refs/cmake$ cd cmake-3.6.1/

~/win/ubuntu/refs/cmake/cmake-3.6.1$ ./bootstrap --prefix=/home/ichi/bin
---------------------------------------------
CMake 3.6.1, Copyright 2000-2016 Kitware, Inc.
(snip)
CMake has bootstrapped.  Now run make.

~/win/ubuntu/refs/cmake/cmake-3.6.1$ make -j 8 --prefix=/home/ichi/bin
[  0%] Building C object Utilities/cmcompress/CMakeFiles/cmcompress.dir/cmcompress.c.o
(snip)
[100%] Built target ctest

~/win/ubuntu/refs/cmake/cmake-3.6.1$ make install
[  3%] Built target cmsys
(snip)
-- Installing: /home/ichi/share/cmake-3.6/completions/ctest

~/win/ubuntu/refs/cmake/cmake-3.6.1$ cd ../../build

~/win/ubuntu/refs/build$ cmake -G "Unix Makefiles" ../llvm

~/win/ubuntu/refs/build$ cmake -G "Unix Makefiles" ../llvm
-- The C compiler identification is GNU 4.8.4
(snip)
-- Build files have been written to: /home/ichi/win/ubuntu/refs/build

~/win/ubuntu/refs/build$ make -j8
Scanning dependencies of target LLVMSupport
(snip)
[100%] Built target c-index-test
~/win/ubuntu/refs/build$ sudo make install

~/win/ubuntu/refs/build$ clang
clang-4.0: error: no input files

~/win/ubuntu/refs/build$ cd ~/tmp

~/tmp$ cat > a.cpp
constexpr int fact(int n)
{
    if (n <= 0)
        return 1;
    else
        return n * fact(n-1);
}

static_assert(fact(10) == 3628800, ""); // OK
static_assert(fact(1) == 0, "");        // error

int main()
{
    return 0;
}

~/tmp$ clang --std=c++14 a.cpp
a.cpp:10:1: error: static_assert failed ""
static_assert(fact(1) == 0, "");        // error
^             ~~~~~~~~~~~~
1 error generated.

~/tmp$

Links

HOWTO: Reopen the currently loaded solution from a VS Extension

Motivation

Suppose you are developing user property sheets in your Visual C++ project. Dealing with the Property Manager is really troublesome, so you start to develop a VS extension. The VS entension manages which property sheets to import and edits property sheets.

You encounter a problem. If you edit a property sheet outside the IDE, the IDE will not automatically reload the property sheet and therefore such changes will not be reflected in the IDE. There seems to be no API for reloading property sheets. Removing the property sheet and re-adding it does not work either; property sheets seem to be cached somewhere.

In order to have the IDE reload property sheets, the only workaround I have found is reopening the entire solution. Let's do it.

Environment

Code Fragment

private void MenuItemCallback(object sender, EventArgs e)
{
    // Obtain the SVsSolution service object.
    var solutionService =
        this.ServiceProvider.GetService(typeof(SVsSolution)) as IVsSolution;

    // Check if there exists an open solution.
    object isSolutionOpen;
    solutionService.GetProperty(
        (int)__VSPROPID.VSPROPID_IsSolutionOpen,
        out isSolutionOpen);
    if (!(bool)isSolutionOpen)
    {
        return;
    }

    // Retrieve the information on the open solution.
    // Full path to the directory cotaining the .sln file
    string solutionDirectory;
    // Full path to the .sln file
    string solutionFile;
    // Full path to the .suo file
    string userOptsFile;
    solutionService.GetSolutionInfo(
        out solutionDirectory,
        out solutionFile,
        out userOptsFile);

    // Close the entire solution. (pHier == null, docCookie == 0)
    solutionService.CloseSolutionElement(
        // Prompt the user whether to save unsaved changes.
        (uint)__VSSLNSAVEOPTIONS.SLNSAVEOPT_PromptSave,
        null,
        0);

    // Reopen the solution.
    solutionService.OpenSolutionFile(0, solutionFile);
}

References

ARM-USB-TINY-H で Raspberry Pi を JTAG デバッグ

概要

Windows 環境から、JTAG デバッガ Olimex ARM-USB-TINY-H で Raspberry Pi に接続して、JTAG デバッグを行います。

ロスコンパイラはすでにビルドしてあるものとします。 インストール先等のパスは適宜読み替えてください。

環境

Debian Linux

MinGW 向けビルド用に、Debian Linux 環境を用意します。以下のものを入れておきます:

sudo apt-get install mingw-w64 cmake pkg-config

OpenOCD のビルド

OpenOCD は、JTAG デバッガ等を経由でターゲットに接続し、GDB プロトコルデバッグを可能にするプログラムです。

今回は、OpenOCD を MinGW 向けにビルドします。

pkg-config

https://www.flameeyes.eu/autotools-mythbuster/pkgconfig/cross-compiling.html を参考にして、 MinGW-w64 向けに *.pc ファイルのパスを変更した pkg-config を作成します。

sudo cat > /usr/bin/i686-w64-mingw32-pkg-config
sudo chmod 755 /usr/bin/i686-w64-mingw32-pkg-config

i686-w64-mingw32-pkg-config の内容は、以下の通り:

#!/bin/sh

export PKG_CONFIG_DIR=
export PKG_CONFIG_LIBDIR=/usr/i686-w64-mingw32/lib/pkgconfig/
export PKG_CONFIG_SYSROOT_DIR=/

exec pkg-config "$@"

libusb-1.0.9

libusb をビルドします。

tar xjf libusb-1.0.9.tar.bz2
./configure --build=`./config.guess` --host=i686-w64-mingw32 --prefix=/usr/i686-w64-mingw32/
make
sudo make install

libftdi1-1.1

libftdi をビルドします。

cmake -DCMAKE_TOOLCHAIN_FILE=/cmake/Toolchain-i686-w64-mingw32.cmake \
    -DCMAKE_INSTALL_PREFIX="/usr/i686-w64-mingw32" \
    -DPKG_CONFIG_EXECUTABLE=`which i686-w64-mingw32-pkg-config` \
    -DLIBUSB_INCLUDE_DIR=/usr/i686-w64-mingw32/include/libusb-1.0 \
    -DLIBUSB_LIBRARIES=/usr/i686-w64-mingw32/lib/libusb-1.0.a
make
sudo make install

README.mingw には PKG_CONFIG_EXECUTABLE を与えろと書いてあるので指定していますが、実際には参照していないようです。

openocd-0.7.0

OpenOCD をビルドします。 今回、なぜか 0.7.0 をビルドしてしまいましたが、0.8.0 でよいと思います。

sudo cp /usr/i686-w64-mingw32/include/libftdi1/ftdi.h /usr/i686-w64-mingw32/include/
tar xjf openocd-0.7.0.tar.bz2
./configure --build=`./config.guess` --host=i686-w64-mingw32 --prefix=/usr/i686-w64-mingw32/ \
    --enable-ft2232_libftdi
# ここで下記の修正を行う
make
sudo make install

ビルドエラーになるので修正します。openocd-0.7.0/src/jtag/drivers/ft2232.c (138) に以下の記述がありますが、ftdi_chip_type は ftdi.h で既に定義されているので削除しておきます。

    enum ftdi_chip_type { TYPE_2232H = 4, TYPE_4232H = 5, TYPE_232H = 6 };

また、Makefile 中で LIBS=-lftdi -lusb となっている部分を LIBS=-lftdi1 -lusb-1.0 に変更します。 たとえば、以下のようなコマンドを実行すればよいでしょう。

find -name Makefile | xargs sed -b -i "s/\-lftdi \-lusb/\-lftdi1 \-lusb\-1\.0/"

ドライバ

Olimex ARM-USB-TINY-H の公式ドライバは署名されていないため、普通には Windows 7 以降の 64-bit Windows にインストールすることができません。

Zadig を使用して、WinUSB をインストールします。 Olimex OpenOCD JTAG ARM-USB-TINY-H (Interface 0) に WinUSB (v6.1.7600.16385) を Install します。

ARM JTAG 20 コネクタと配線

ARM JTAG 20 のソケットを用意します。

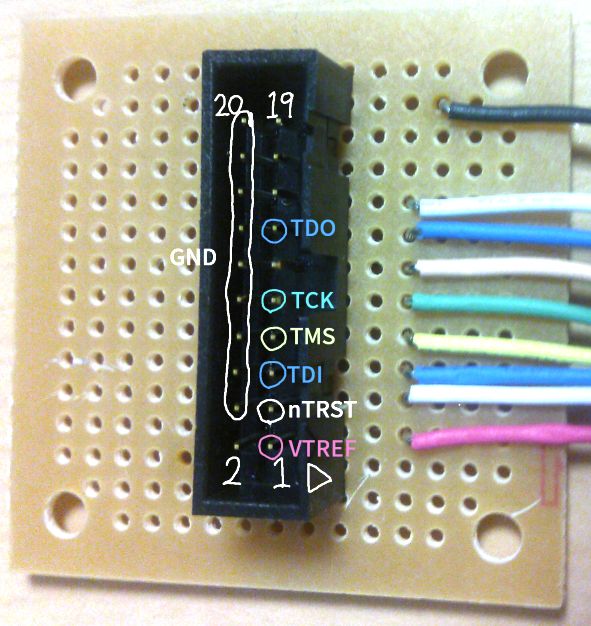

今回は、2.54mm ピッチ 20p ボックスヘッダ のようなものを使用して、以下の信号線を引き出します。※向きを間違えない自信があるならピンヘッダ 2*10 でもよいと思います。

  • GND: 2,4,6,8,10,12,14,16,18,20
  • VTREF: 1
  • nTRST: 3
  • TDI: 5
  • TMS: 7
  • TCK: 9
  • TDO: 13

f:id:asmichi:20140815202522j:plain

アダプティブクロッキングを使用しないので、RTCK は接続しなくてもよいと思います。

SRST を接続しても上手くリセットできなかったのですが、リセットできたとしても後述する GPIO の設定もリセットされてしまいデバッグが継続できないはずなので、SRST を接続しても無意味だと思います。

デバッグ

準備: GPIO ポートの設定

ターゲット起動時に動作させるプログラムで、GPIO の設定を変更しておきます。

GPIO番号 ALT番号 ピン 信号名
GPIO22 ALT4 P1-15 nTRST
GPIO04 ALT5 P1-07 TDI
GPIO27 ALT4 P1-13 TMS
GPIO25 ALT4 P1-22 TCK
GPIO24 ALT4 P1-18 TDO

先ほどのコネクタから引き出した線をこれらのピンに接続します。

VTREF は、3.3V 電源のピンのいずれかに接続します。 http://elinux.org/RPi_Low-level_peripherals#General_Purpose_Input.2FOutput_.28GPIO.29 を参考にします。

接続

OpenOCD で Raspberry Pi に接続します。

まず、OpenOCD の設定ファイルを用意します。

Olimex ARM-USB-TINY-H 用の設定ファイルは、OpenOCD のソースファイル中にあります。 openocd/tcl/interface/olimex-arm-usb-tiny-h.cfg です。

Raspberry Pi 用の設定ファイルは、David Welch さんのリポジトリ のものを使わせてもらいます。armjtag/raspi.cfg です。

以下の通り、OpenOCD を起動します。デフォルトでは、TCP 3333 で GDB プロトコルのサーバが上がります。

openocd.exe -f olimex-arm-usb-tiny-h.cfg -f raspi.cfg

別のターミナルで、GDB を起動します。接続後、一度 continue しておかないと、うまくデバッグできないようです。

arm-unknown-eabi-gdb hoge.elf
> target remote localhost:3333
> continue
^C

これで、デバッグできます。

References
